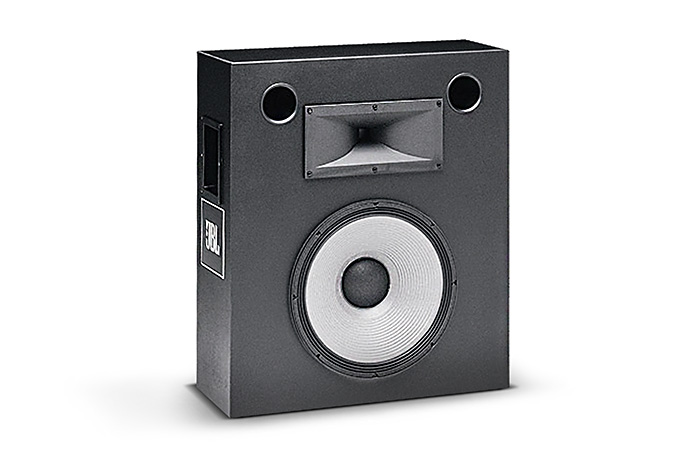

Screen Channel System
The 3677 screen channel system provides natural sound quality for music and dialog in small cinema applications with convenient all-in-one enclosure.
[/span8][span4]
DOWNLOADS
[/span4][/columns]
[hr]
[tabs]
[tab title=”FEATURES” start=open]
- Low Frequency Transducer: One 380 mm (15 in) low frequency driver.
- High Frequency Transducer: 25 mm (1 in) horn throat diameter, 44 mm (1.75 in) pure titanium diaphragm compression driver.
- 90° x 40° Flat-Front Bi-Radial® horn.
- Newly designed passive network with driver protection circuit.
- All in one enclosure for simple installation.
- Shallow profile cabinet minimizes behind-screen space requirements.
[/tab]

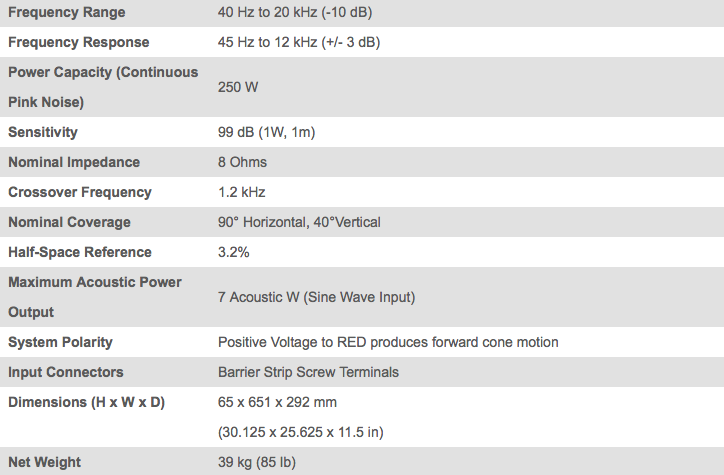

[tab title=”SPECIFICATIONS”]
