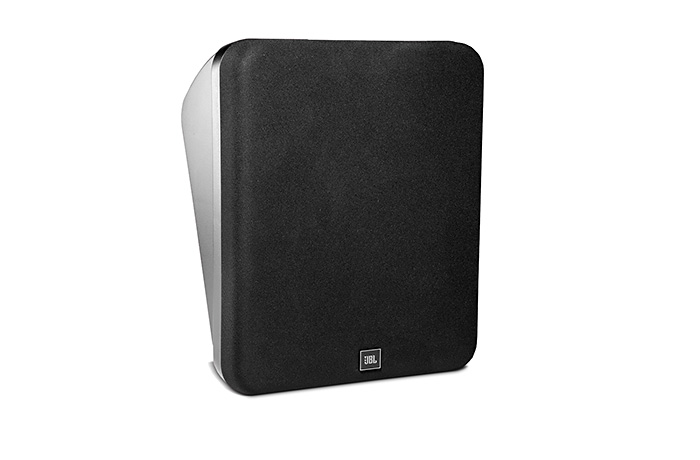

8320 front

[/span4][span4]

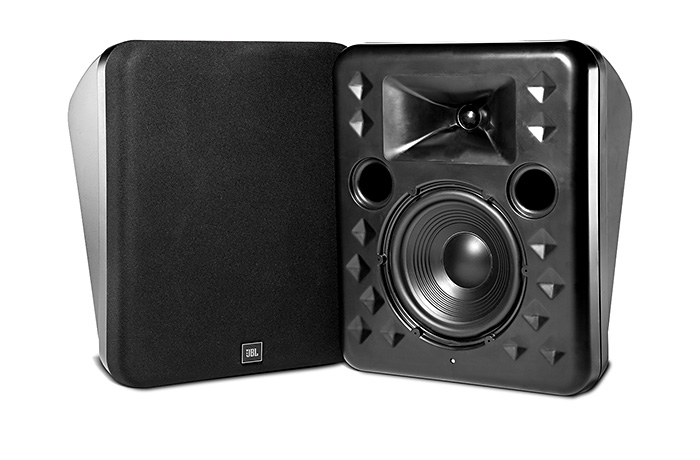

8320 pair

[/span4][span4]

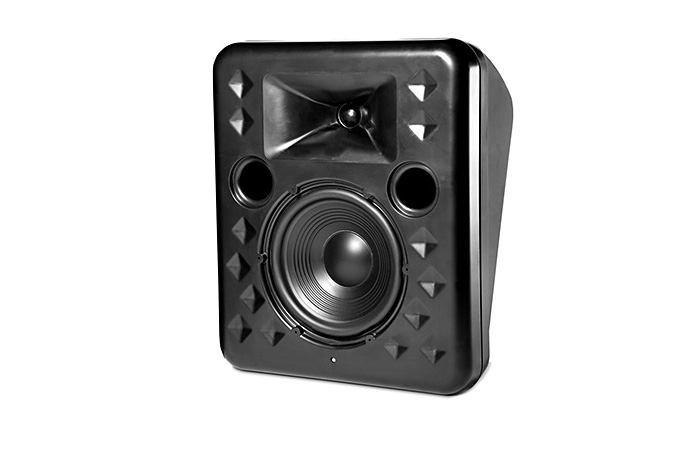

8320 front nogrill

[/span4][/columns]

[hr]

[columns] [span8]

Compact Cinema Surround Speaker for Digital Applications
The 8320 Cinema Surround Speaker offers high power handling, high sensitivity, and extended bass response in a very compact enclosure. The twoway 8320’s reliability and performance features position it as the ideal low cost, compact surround for the extended dynamic range required by digital sound formats.

[/span8][span4]

DOWNLOADS

JBL 8320

[/span4][/columns]

[hr]

[tabs]
[tab title=”FEATURES” start=open]

  • 50 Hz to 20 kHz Frequency Range
  • High Sensitivity, 91 dB SPL, 1 W, 1 m (3.3 ft)
  • High Power Handling Capability: 150 watts continuous pink noise
  • Internal Thermomaster® technology allows for unprecedented high frequency power in a compact molded enclosure.
  • Convenient mounting design uses JBL QuickMount™, Omnimount® or APC Multimount brackets
  • Special cabinet shape incorporates 20° angled front baffle
  • SMPTE/ISO2969 Curve X high frequency de-emphasis
  • Lightweight, rigid molded enclosure
  • Input terminals located on top of cabinet for quick access
  • Uniform horizontal and vertical coverage
  • THX® Approved

[/tab]
[tab title=”SPECIFICATIONS”]

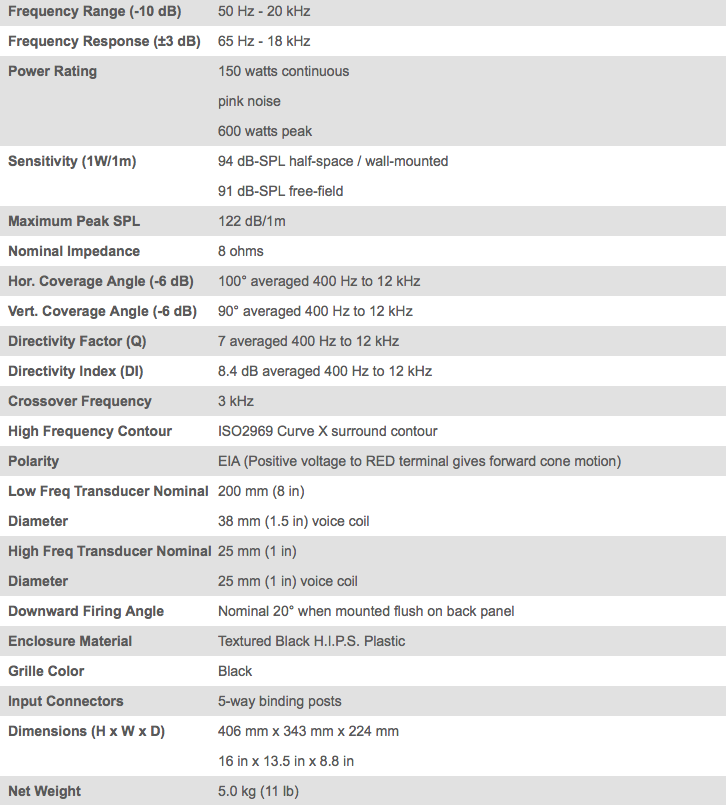

8320 SPECS
