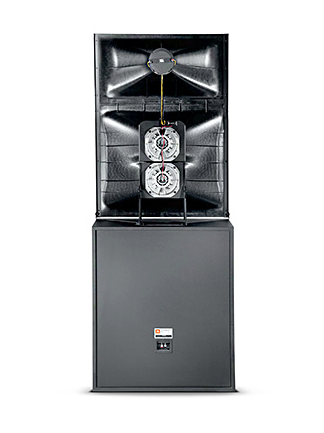

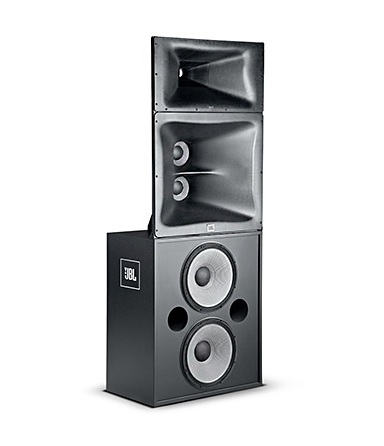

3-Way High Power ScreenArray Loudspeakers
Today’s premier cinemas require perfect coverage in every seat of the auditorium, wide dynamic range and extended bandwidth, as well as inaudible levels of distortion. Digital soundtracks require sound systems for premier auditoriums that can accurately reproduce the sound exactly as recorded.
[/span8][span4]
DOWNLOAD SPEC SHEET
DOWNLOAD 3D DRAWINGS
[/span4][/columns]
[hr]
[tabs]
[tab title=”FEATURES” start=open]
- Three-way ScreenArray® design for maximum output, optimal coverage, and minimum distortion.
- 700 watt midrange featuring two 8″ Differential Drive® transducers
- Large format 4″ neodymium, damped titanium diaphragm, high frequency compression driver.
- 1200 W low-frequency section with two 15″ Vented Gap Cooled low frequency transducers
- New molded Optimized Aperture Waveguide technology for ultra low distortion and extremely uniform frequency response.
- JBL Patented SSC™ Screen spreading Compensation
- Focused Coverage Technology
- Flat Front Wave Guide for easy baffle wall installation
- Shallow 18″ profile for minimum behind screen depth requirements.
[/tab]
[tab title=”APPLICATION”]
- High power critical sound reproduction in premier cinemas and studio production and post production applications.
[/tab]

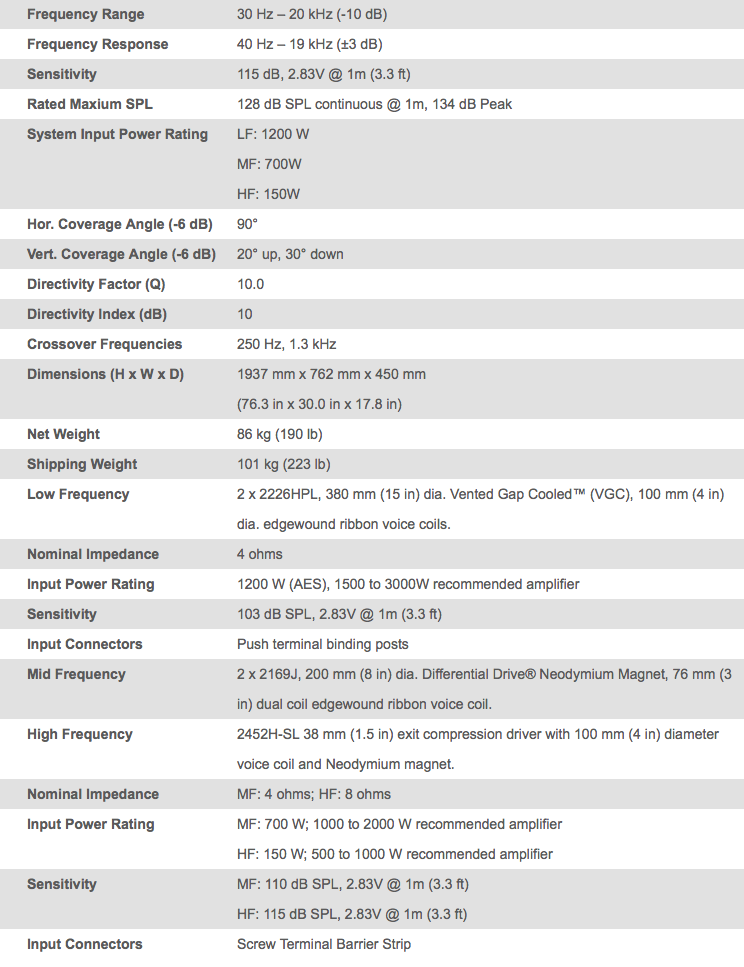

[tab title=”SPECIFICATIONS”]
[/tab]
