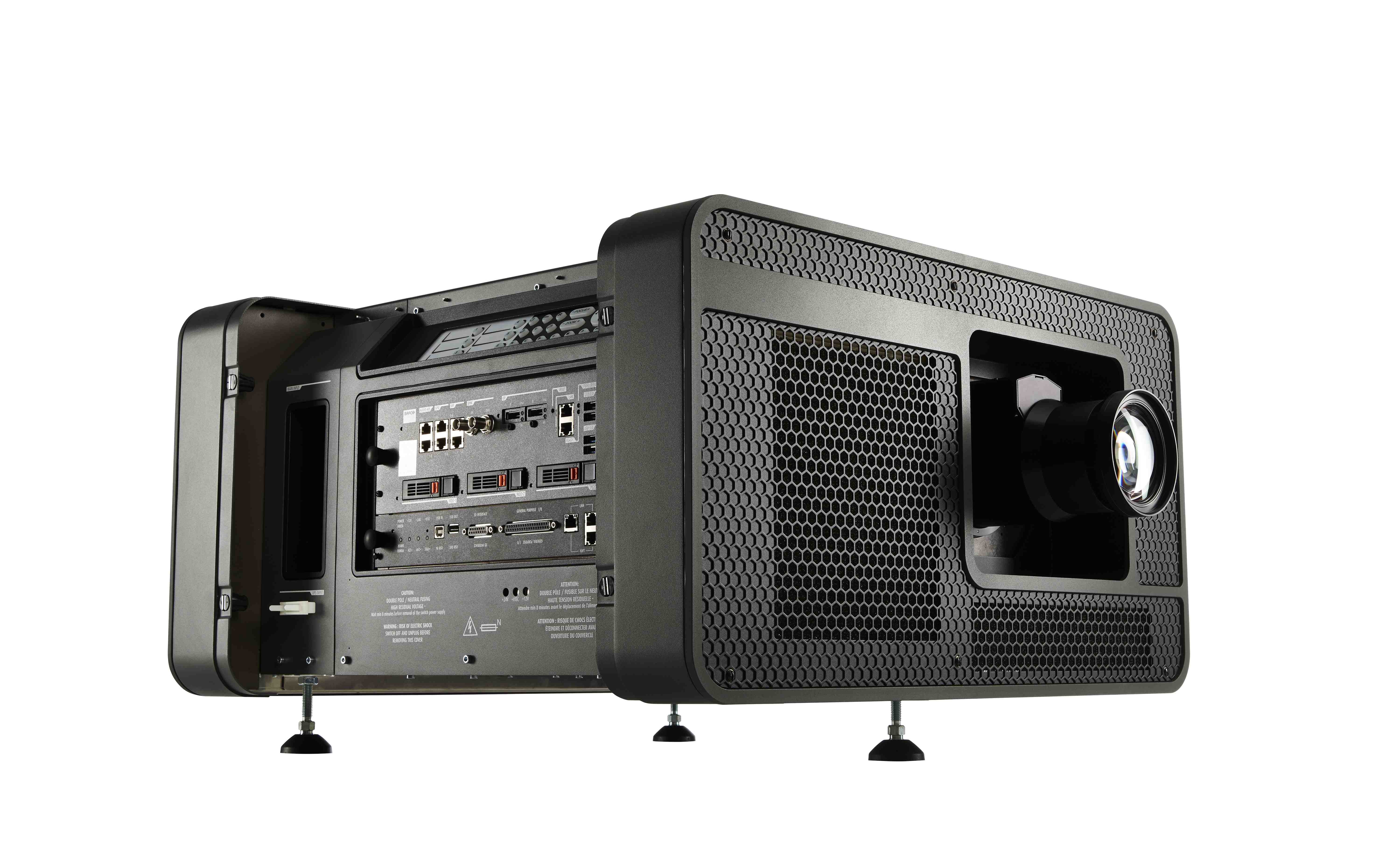

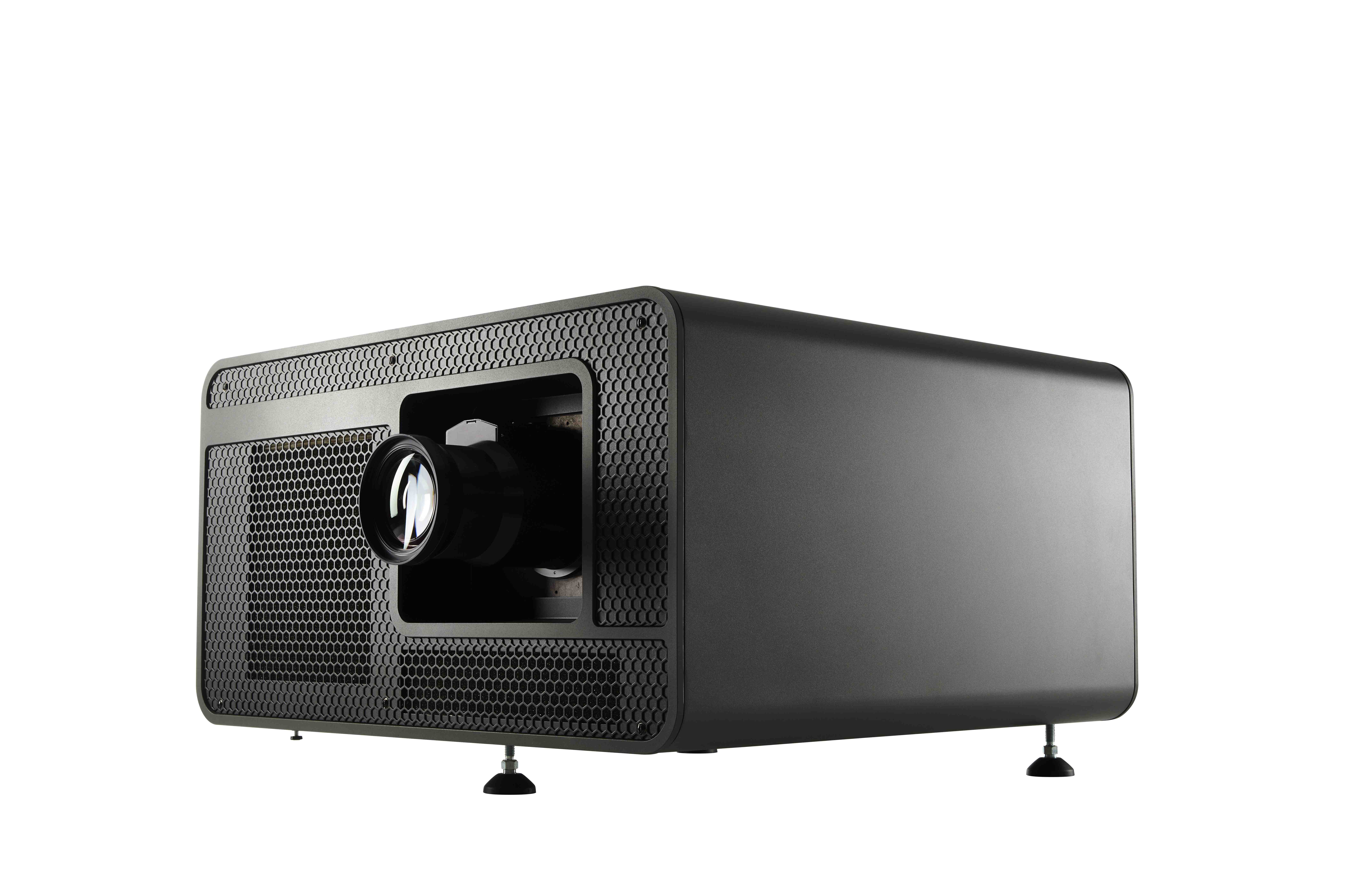

Compact DLP Barco Alchemy Cinema projector for screens up to 7.5m (24ft) wide
- Twice as quiet as the quietest digital cinema projector
- Simple UHP lamp swap for easy maintenance
- Fully integrated and DCI-compliant projector
[hr]
[tabs]
[tab title=”Description” start=open]
Taking digital cinema where it’s never gone before
The DP2K-6E brings compact, fully integrated and DCI compliant digital cinema projection to small and independent cinemas worldwide. And how!
Why you’ll love the DP2K-6E
- Cost-effective and fully integrated thanks to its on-board Barco Alchemy Series 3 module
- UHP lamps enable easy maintenance and compact design
- Twice as silent as the quietest projector currently on the market and super compact
- Trademark Barco quality, and modularity, now also for the smallest screens
Features
Unique benefits of Barco Alchemy technology
- Series 3 electronics combining media server functionality with cinema processing electronics
- Fewer boxes lead to higher reliability and ease-of-use
- Simple operation thanks to the intuitive ‘Barco Web Commander’ user interface
[/tab]
[tab title=”Specs”]
| Native resolution | 2,048 x 1,080 pixels |
|---|---|
| Digital MicroMirror Device™ | 3 x 0.69” DC2K dark metal devices |
| Housing | Hermetically sealed DMDs and optical assembly |
| Light output | DCI colors: 4,800 lumens / Non-DCI: 7,200 lumens |
| Lamps | Dual 465W, UHP lamps |
| Screen size | Up to 7.5m/24.6 ft wide (screen gain 1.2 @ 14ftl) |
| Contrast ratio | 1,600:1 |
| Prime lenses | Fully motorized 1.2 – 1.7 1.34 – 1.9 1.5 – 2.15 1.7 – 2.55 2.0 – 3.9 |
| Control I/O | 3x Ethernet (RJ 45) 8x GPIO (DB 25) 3D interface USB interface |
| Integrated Cinema Media Processor | DCI 4K 2D up to 60fps* DCI 4K 3D (24 or 30 fps per eye)* DCI High Frame Rates 2K 3D up to 120fps (60fps per eye) JPEG 2000 bit-rates up to 625Mbps Dual-channel color-correction MPEG-2 (4:2:0 and 4:2:2 up to 60fps) 2x HDMI2.0a (up to 4K 2D 60fps) 2x 3G-SDI inputs 1x HDMI 1.4a (up to 4K 2D 24fps, support for BluRay 3D) 16x AES/EBU audio channels (2x RJ45) 8x GPI, 8x GPO (4x RJ45) 2x Gbe for content connectivity & ingest 2x front-accessible USB 3.0 for fast ingest 2x front-accessible USB 2.0 Video watermarking: Civolution NexGuard Audio watermarking: Civolution Closed captioning devices: Support for SMPTE 430-10 * 4K 24fps is standard. For 4K 60 fps / 4K 3D on ICMP upgrade modules a license is required. Newly-built 4K Barco Alchemy projectors have the license standard included. |
| Integrated storage | 1.9TB effective storage (RAID-5) / 3x 1TB Hot-swappable 2.5″ hard-drives 3.9TB effective storage (RAID-5) / 3x 2TB Hot-swappable 2.5″ hard-drives |
| Barco Web Commander | Projector Dashboard Projector Control Board Show Player/Editor/Scheduler Automation, 3D, Ingest TMS integration Smart Projector Status Via HTML5 web-browsers including iOS & Android tablets |
| Barco Communicator | Projector installation & configuration Projector update & maintenance |
| Power requirements | 200-240 VAC |
| Projector dimensions (HxWxD) | 369 x 689 x 664 mm 14.5 x 27.1 x 26.1 inch |
| Projector weight | 53.8 kg / 119 lbs (including recessed handles for easy carrying) |
| Ambient temperature | 35°C / 95°F Max. |
| Options | Barco CineMate App (iOS & Android) – free 3D add-ons Touch screen monitor, inc. Barco Commander & Communicator Pedestal CineCare Web Auro 11.1 license Barco Escape license Live 3D*** Ghostbusting*** Ceiling mount kit*** (*** roadmap) |
| Noise Level | 48 dB(A) |
| Airflow requirements | 43 CFM |
